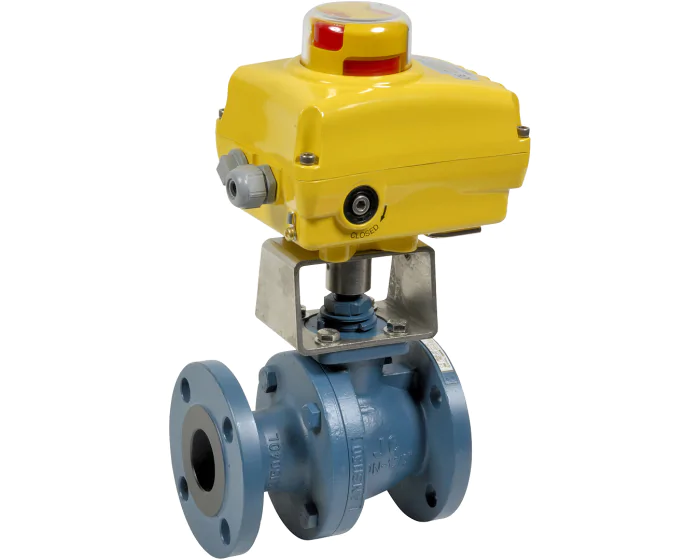

The JC 515AIT ball valve has an A216 WCB carbon steel body, stainless steel ball and PTFE seats. It is actuated with an SA/NA electric actuator. PS: 20 bar, TS: 230°C. ANSI150 RF flanges.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | Yes |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 108.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Power (W) | 18 |
| Connections | Flanged #150 PN20 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' SA 03 | 515AIT015023000 | S1005093 |
€506.53
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' SA 03 | 515AIT020023000 | S1005094 |
€520.90
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' SA 03 | 515AIT025023000 | S1005095 |
€547.44
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' NA 09 | 515AIT050023120 | S1005097 |
€1,301.19
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 NA 09 | 515AIT065023120 | S1005098 |
€1,509.70
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' NA 15 | 515AIT080023130 | S1005099 |
€1,768.46
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' NA 28 | 515AIT100023150 | S1005100 |
€2,316.81
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN200 - 8'' NA 150 | 515AIT200023210 | S1005102 |
€6,243.97
(excl. btw)
|
add to cart |
